Marquis C542
Highest performance Xeon W-2500 uni-processor workstation
- Intel W790 chipset providing excellent performance and stability
- One Intel® Xeon W-2500 processor
- Up to 26 cores and 48.75MB L3 high speed cache
- 64 PCI-Express lanes ideal for multi-GPU setup
- Up to 2TB DDR5-4800 ECC registered memory
- Onboard 4-channel DDR5 memory controller
- Eight DIMM slots for maximum expansion capability
- Blazing fast NVMe PCIe M.2 Gen5 data storage
- Six NVMe PCIe M.2 Gen5 sockets for extra capacity (N6)
- Nvidia GeForce/Quadro GPU accelerator
- Onboard Intel Gigabit and Marvell 10Gigabit Ethernet

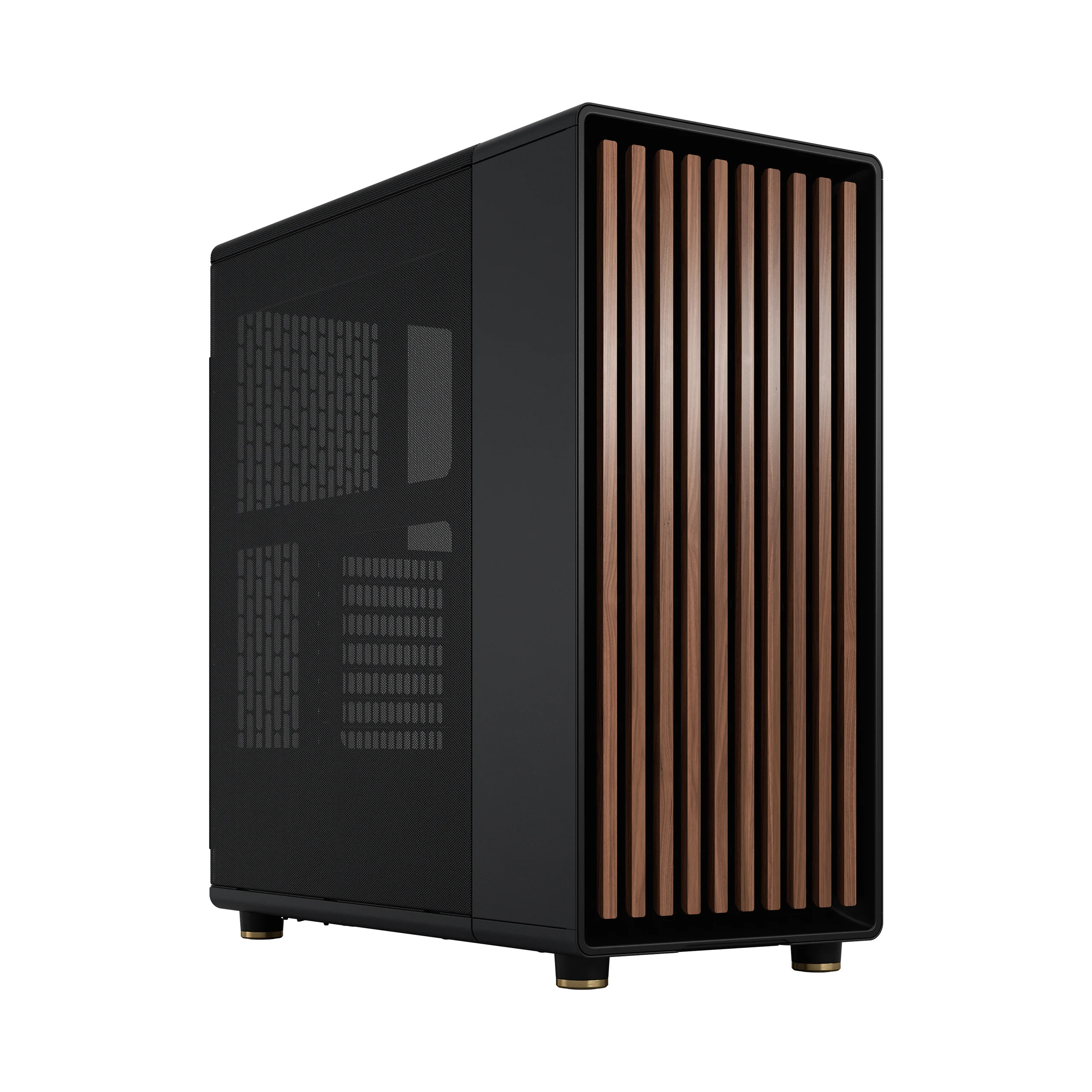

- Pedestal Tower Chassis with high performance power supply
- Angular mesh front panel for maximum air intake
- Seasonic (Platinum Level) full modular power supply
- Noctua NH-U14S CPU cooler for optimal thermal & acoustic performance
- Onboard Remote Server Management over LAN using IPMI 2.0
- 64-bit Linux operating system
- For hardware RAID, please use Sovereign C542-SR8
Three year limited warranty
full specs tech notes
Compare all ASL workstation models
| Marquis C542-N6 | Marquis C542-TT | |
|---|---|---|
| Processor | Intel® Xeon W3-2525 (8-core/3.5Ghz) | Intel® Xeon W3-2525 (8-core/3.5Ghz) |
| Memory | 64GB DDR5-4800 ECC Registered | 64GB DDR5-4800 ECC Registered |
| Storage Controller | Add-on 4-port NVMe PCIe M.2 Gen5 X16 | Onboard W790 SATA 6Gbs |
| Drive Bays | Six M.2 NVMe + Two Fixed 3.5in HD | Two M.2 NVMe + Two Fixed 3.5in HD |
| Hard Disk | 1TB NVME PCIe SSD (OS) | 1TB NVME PCIe SSD (OS) |
| Starting Price |
