Sovereign C542

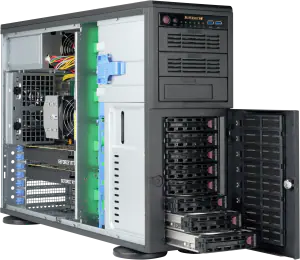

Front View

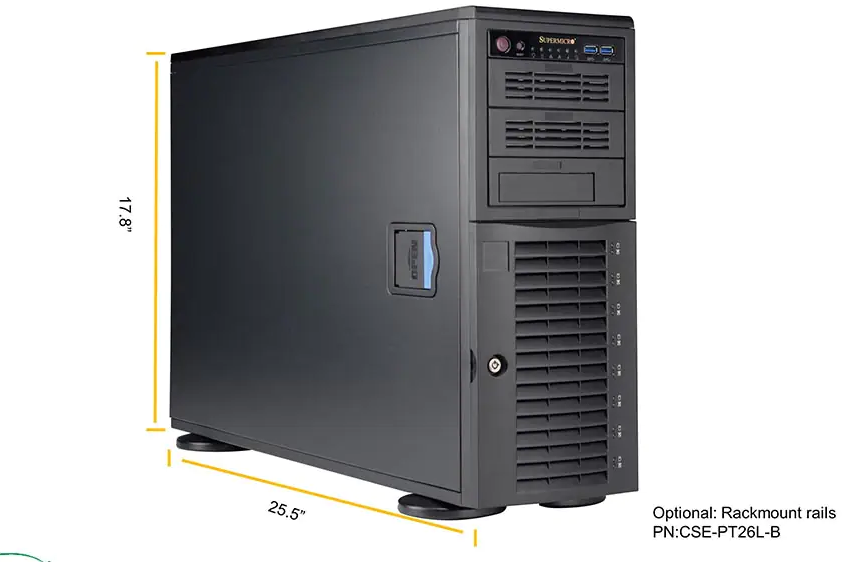

Side View

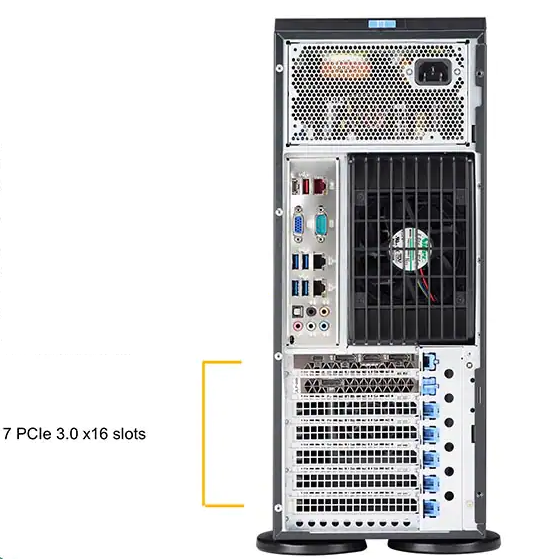

Rear View

Highest performance Xeon W-2400 uni-processor RAID workstation

  • Intel W790 chipset providing excellent performance and stability
  • One Intel® Xeon W-2400 processor
    • Up to 24 cores and 45MB L3 high speed cache
    • 64 PCI-Express lanes ideal for multi-GPU setup
    • Onboard 4-channel DDR5 memory controller
  • Up to 2TB DDR5-4800 ECC registered memory
    • Eight DIMM slots for maximum expansion capability
  • Blazing fast NVMe PCIe M.2 Gen5 OS storage
  • Optional Nvidia GeForce/Quadro/Tesla accelerator
  • Onboard Intel Gigabit and Marvell 10Gigabit Ethernet
  • Broadcom SAS3 12Gbs RAID (SR8) or HBA (SS8) controller
  • Pedestal Tower Chassis with high performance power supply
    • High efficiency Platinum Level power supply
    • SAS3 backplane supporting 8 hotswap drives
    • Optional 4U rack mount conversion kit
  • Real time monitoring of system health status
  • Serial Console Redirection for remote management
  • In-band & out-of-band remote server management over LAN
    using IPMI 2.0
  • 64-bit Linux operating system

Three year limited warranty

full specs tech notes

Compare all ASL Sovereign models

Sovereign C542-SR8 Sovereign C542-SS8
Processor Intel® Xeon W3-2425 (6-core/3.0Ghz) Intel® Xeon W3-2425 (6-core/3.0Ghz)
Memory 64GB DDR5-4800 ECC Registered 64GB DDR5-4800 ECC Registered
Storage Controller Broadcom 3908 SAS3 RAID Broadcom 3808 SAS3 HBA (ZFS support)
Starting Price
