photo of Sovereign 4904

Sovereign 4904

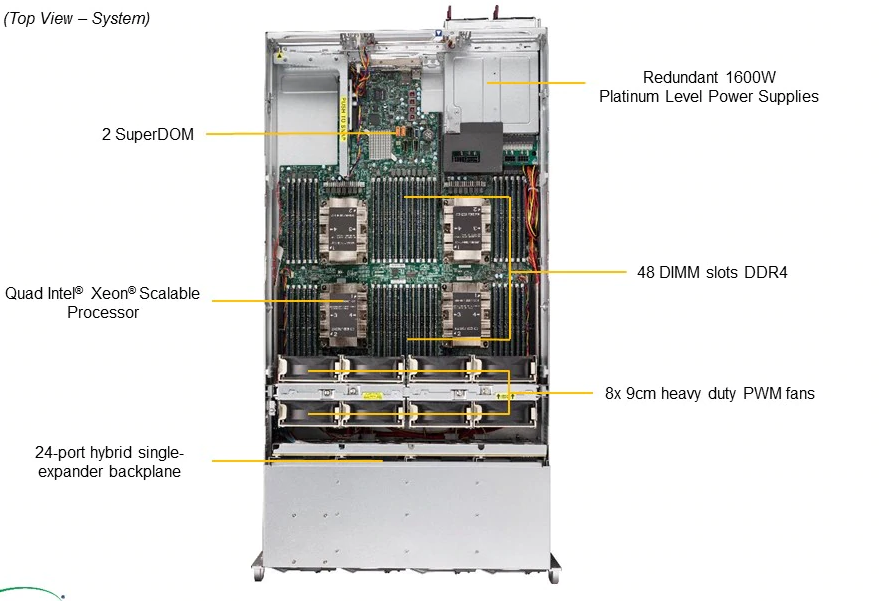

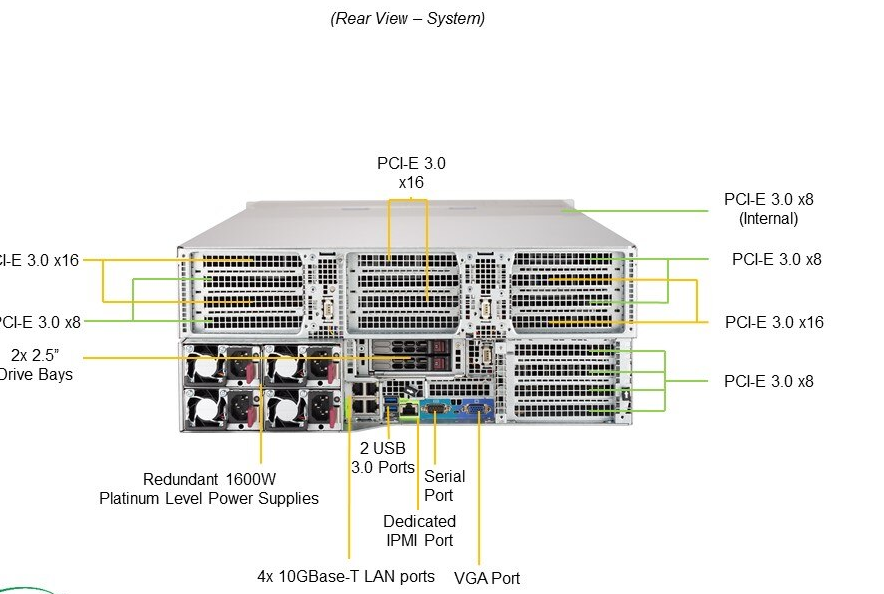

Top View Rear View

Enterprise 4-way Intel Xeon Scalable Processor RAID storage server

  • Intel C621 chipset providing excellent performance and stability
  • Four Intel Xeon Scalable Processor series processors
    • Up to 112 cores and 38.5MB L3 cache
    • Up to 10.4GT/s QuickPath Interconnect
  • Up to 6TB DDR4 ECC registered memory
    • Six Channel memory busses
    • Twelve DIMM slots per CPU socket
  • Onboard cost-effective 10Gigabit Ethernet
    • Enhanced I/O performance for cloud storage
    • Faster and more responsive virtualization
  • Enterprise-grade SATA SSD OS storage
  • Sixteen PCI Express version 3.0 expansion slots
  • 4U rack with Titanium-Level power supply
    • 3+1 redundant & hotswap PSU modules
    • SAS3 backplane supporting 24 hotswap drives
    • Two rear 2.5in hotswap drive bays for SSD/OS setup
  • Serial Console Redirection for remote management
  • Onboard in-band & out-of-band remote server management over
    LAN using IPMI 2.0
  • 32-bit or 64-bit Linux operating system

Three year limited warranty

full specs tech notes

Compare all ASL Sovereign models

Sovereign 4904-SST Sovereign 4904-SRT
Processor 4 x Xeon® Gold 5215 (10-core) 4 x Xeon® Gold 5215 (10-core)
Networking Intel XL710-BM1 Quad Port 10Gigabit Intel XL710-BM1 Quad Port 10Gigabit
Storage Controller Broadcom 3008 SAS3 SW RAID Broadcom 3108 SAS3 HW RAID
Hard Disk 960GB eSATA SSD (OS) 960GB eSATA SSD (OS)
Starting Price
