photo of Sovereign 3896

Sovereign 3896

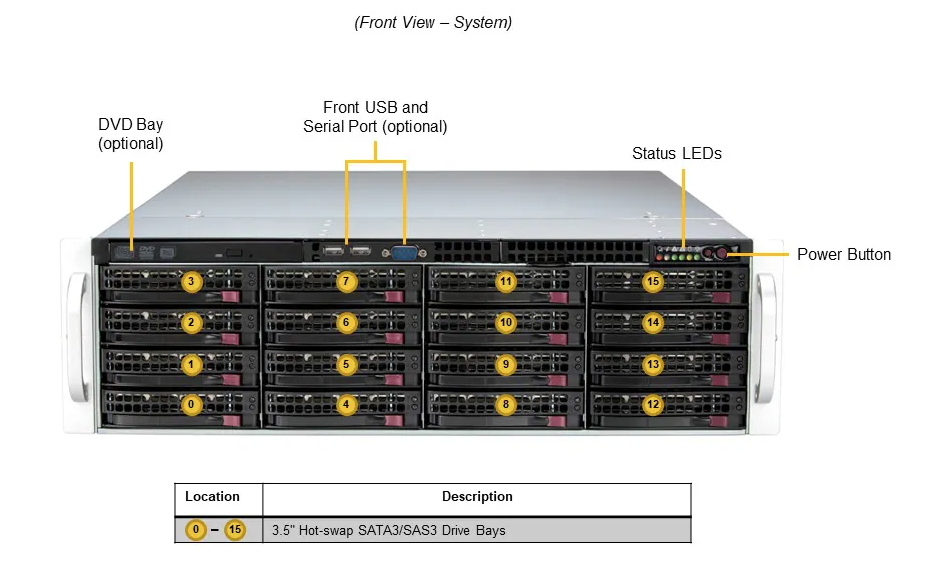

Front View

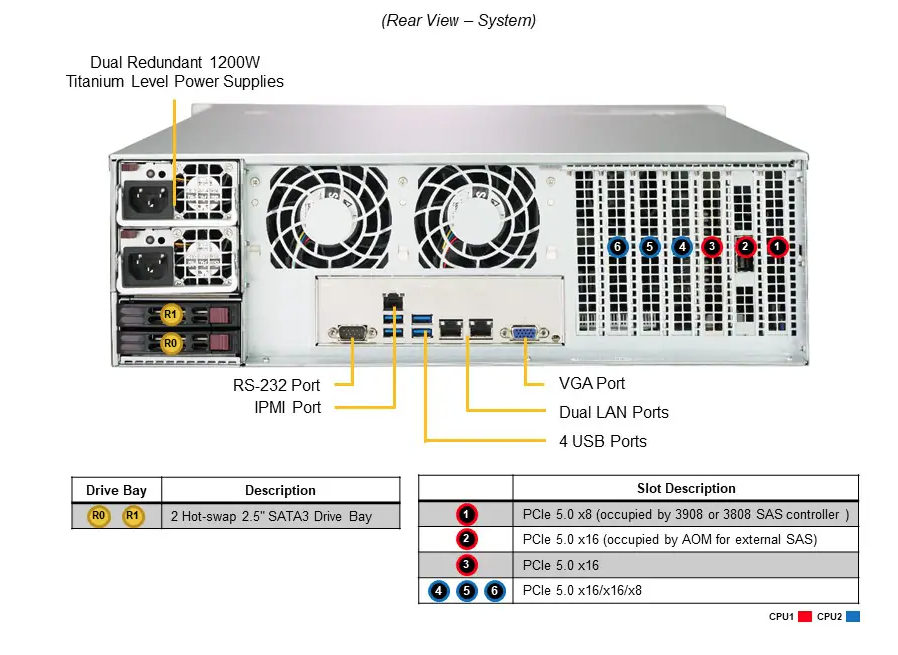

Rear View

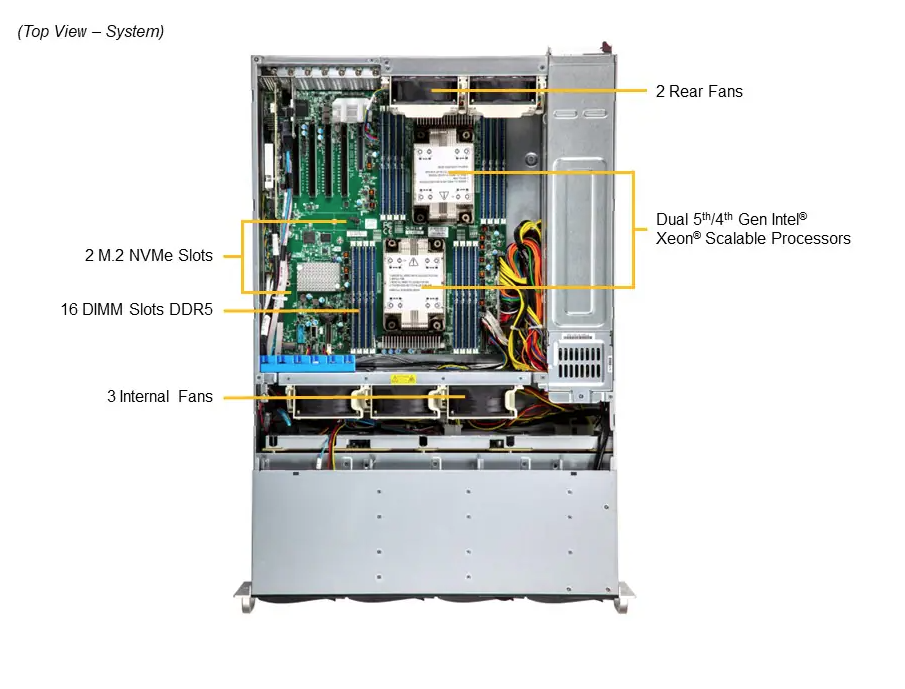

Top View

Enterprise 2-way Intel Xeon Scalable Processor RAID storage server

  • Intel C741 chipset providing excellent performance and stability
  • Up to two Intel Xeon Scalable 4th/5th Gen series processors
    • Onboard Accelerators for AI, Data Analytics and Network performance efficiency
    • Up to 128 physical cores
  • Up to 4TB DDR5 ECC registered memory
    • Eight Channel memory busses
  • Onboard cost-effective 10Gigabit Ethernet
    • Enhanced I/O performance for cloud storage
    • Faster and more responsive virtualization
  • Broadcom high speed SAS3 12Gbs PCIe 4.0 controllers
    • The HBA model (SST) is optimized for ZFS filesystem
    • The RAID model (SRT) supports level 0, 1, 5, 6, 10, 50 and 60
  • Blazing fast NVME PCIe SSD OS storage
  • Six PCI Express version 5.0 expansion slots
  • 3U rack with hotswap & redundant power supply
    • High efficiency Titanium Level power supply
    • SAS3 backplane supporting 16 hotswap drives
  • Serial Console Redirection for remote management
  • Onboard in-band & out-of-band remote server management over
    LAN using IPMI 2.0
  • 32-bit or 64-bit Linux operating system

Three year limited warranty

full specs tech notes

Compare all ASL Sovereign models

Sovereign 3896-SST Sovereign 3896-SRT
Processor One Xeon® Silver 4410T (10-core) One Xeon® Silver 4410T (10-core)
Memory 128GB DDR5-4800 ECC registered 128GB DDR5-4800 ECC registered
Storage Controller Broadcom 9500-8i SAS3 Host Bus Adapter Broadcom 9560-8i SAS3 RAID Controller
Starting Price
