Sovereign 1611 Specifications.


(1611-T) Supermicro X10SDV-F serverboard, Mini-ITX form factor
(1611-TT) Supermicro X10SDV-TLN4F serverboard, Mini-ITX form factor


Intel Xeon D-1540 (Broadwell-DE) 2.0ghz, 8-core, 12MB L3, 14nm, 45W


Intel® D-1540 SoC

Memory Subsystem:

Four (4) 240-pin DIMM banks supporting up to 128GB DDR4 ECC registered memory, Dual channel memory bus

Note: Dual channel configuration requires two or four modules

Graphic Subsystem:

BMC (IPMI) integrated Aspeed AST2400

Hard Disk Subsystem:

Up to four (4) SATA 3.5in hard drives. These drives can be configured as standalone units or software RAID.
Up to two (2) SATA 2.5in hard drives. These drives can be configured as standalone units or software RAID.

Storage Controllers:

Intel® D-1540 SoC integrated SATA controller, 6xSATA 6Gbs ports

CD-ROM Subsystem:

Optional external 8X DVD+-RW optical burner, USB 2.0 interface

Sound Subsystem:


Network Subsystem:

(1611-T/TT) Onboard Intel i350-AM2 Dual-port PCI-Express Gigabit Ethernet controller, 1000Base-T, RJ-45
(1611-TT) Onboard Intel Dual-port PCI-Express 10Gigabit Ethernet controller via SoC, 10GBase-T, RJ-45
Onboard in-band and out-of-band remote server management (over LAN, IPMI 2.0) with dedicated LAN

System Slots:

One (1) PCI Express x16 (v3.0) slot, low profile
One (1) M.2 PCI Express x4 (v3.0) slot, M Key 2242/2280

System I/O:

One (1) RS-232C 16550 serial port (via header)
Two (2) USB 3.0 ports (rear accessible)
Two (2) USB 2.0 ports (front accessible)
One (1) DB-15 VGA port
(1611-T) Two (2) RJ-45 Ethernet ports
(1611-TT) Four (4) RJ-45 Ethernet ports
One (1) RJ-45 Ethernet port (IPMI only)






Mini-ITX Tower case, FCC Class B, black bezel
Sample Chassis Images:

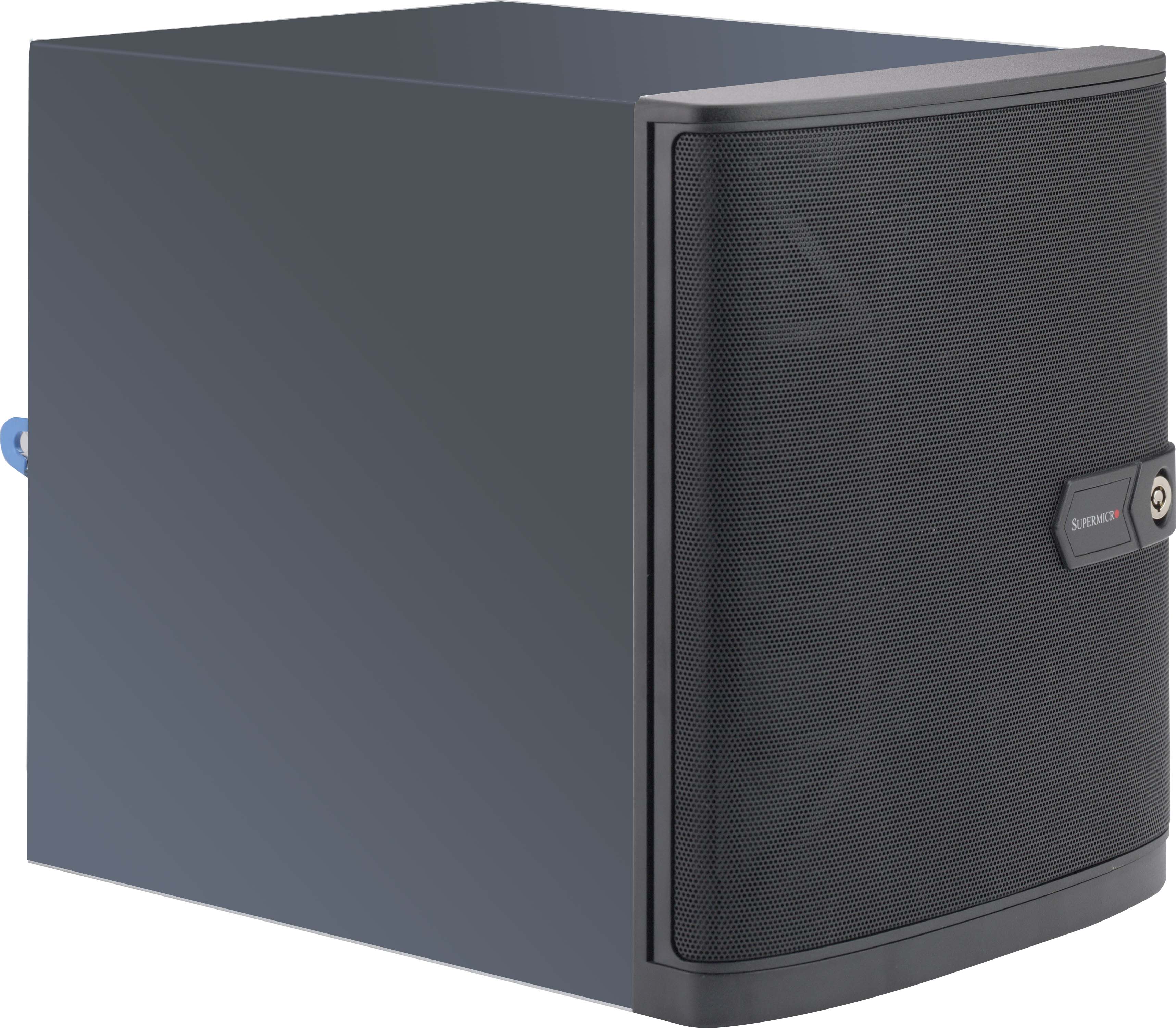

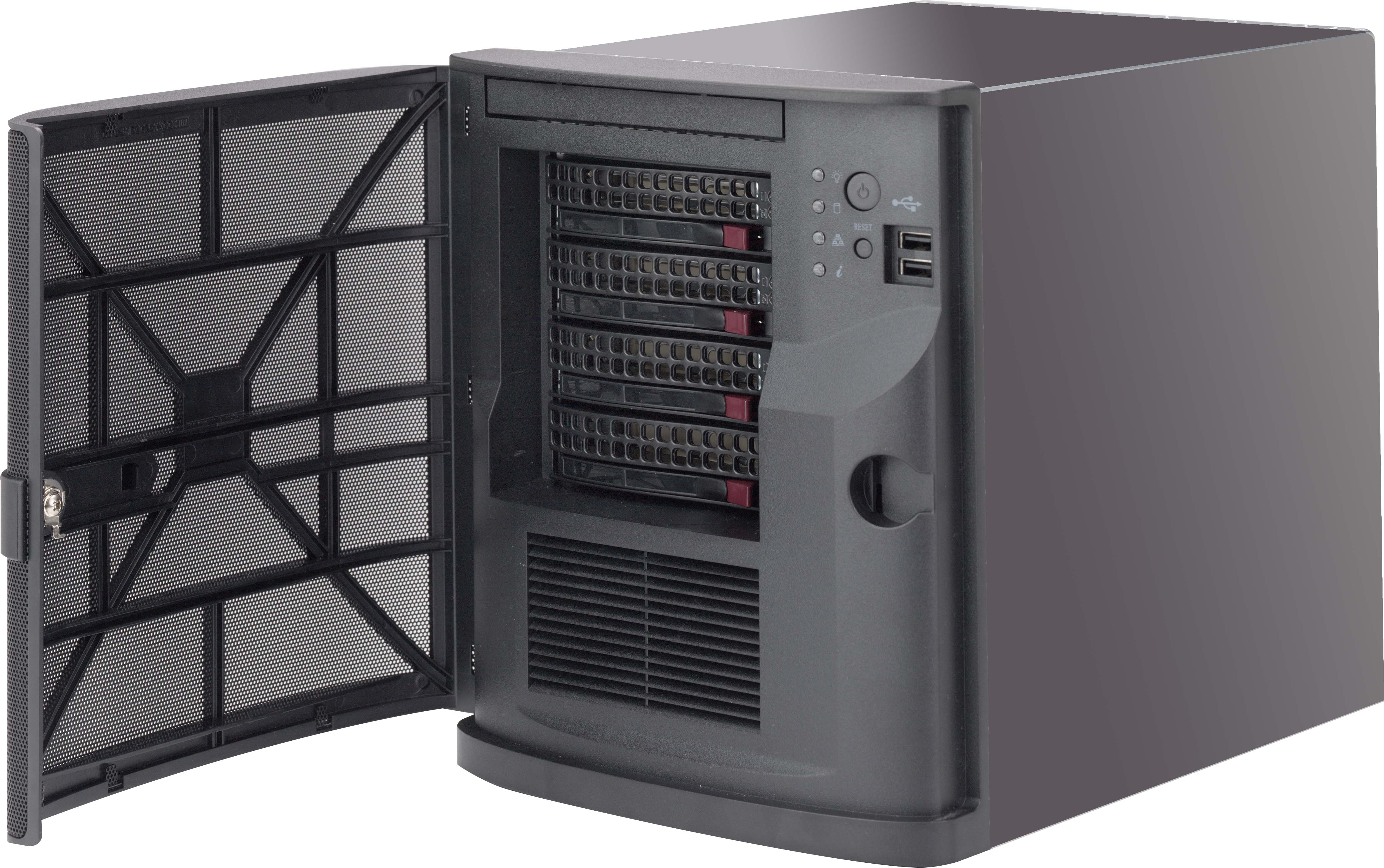

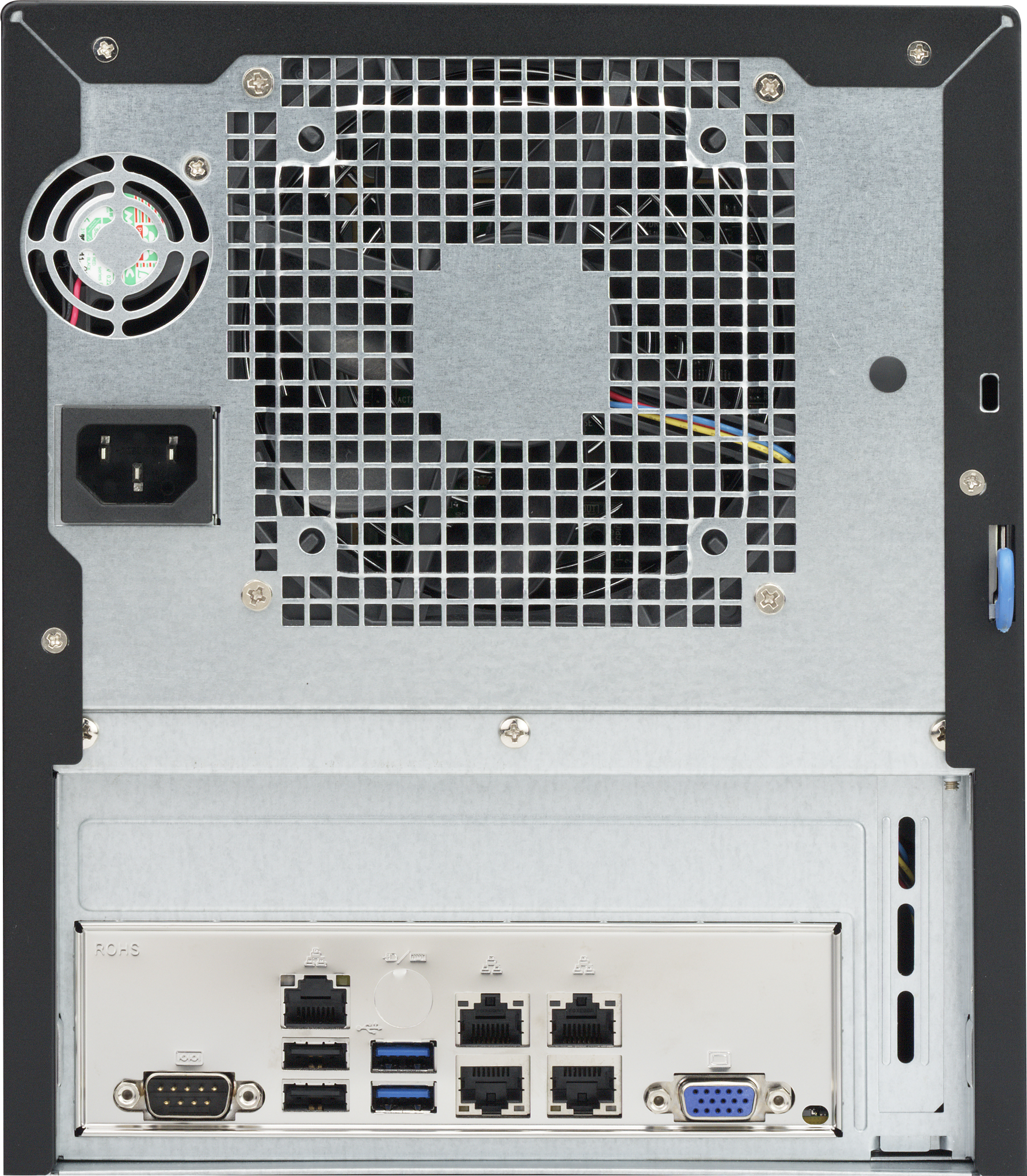

Front View (closed) Front View (open) Rear View
Security lock for the front panel
250W Flex-ATX power supply, 80Plus Bronze Level
Dimensions: 9.45" (H) x 8.27" (W) x 11.0" (D)
SAS2 backplane with SES2 enclosure management
Four (4) 3.5in hotswap hard drive bays
Two (2) 2.5in fixed hard drive bays
One (1) 12cm low noise ball bearing, exhaust fan

Preinstalled Software:

Fedora, Ubuntu or CentOS 64-bit operating system

Phone: 1.877.ASL.3535
