photo of Lancelot 2861

Lancelot 2861

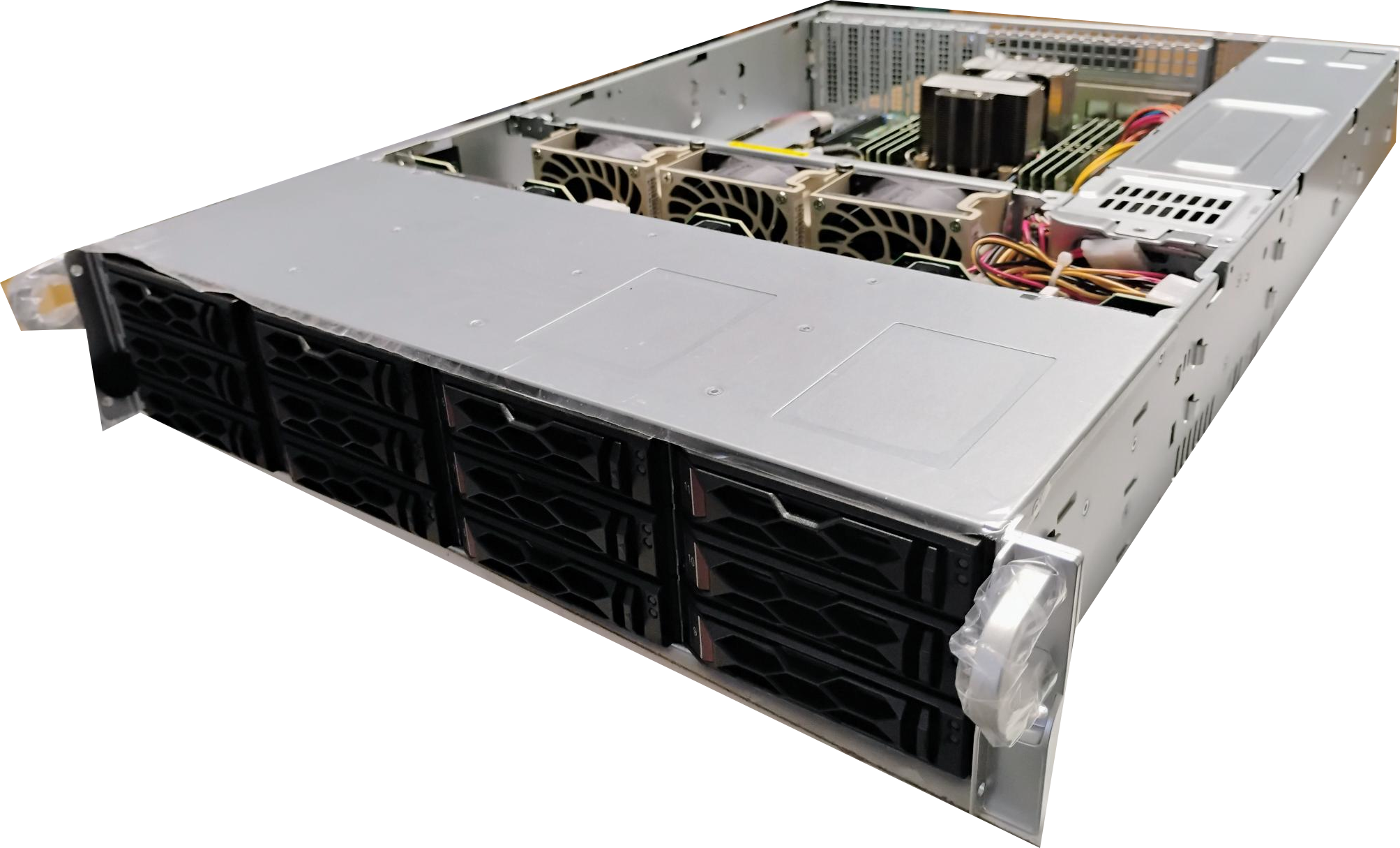

Front View

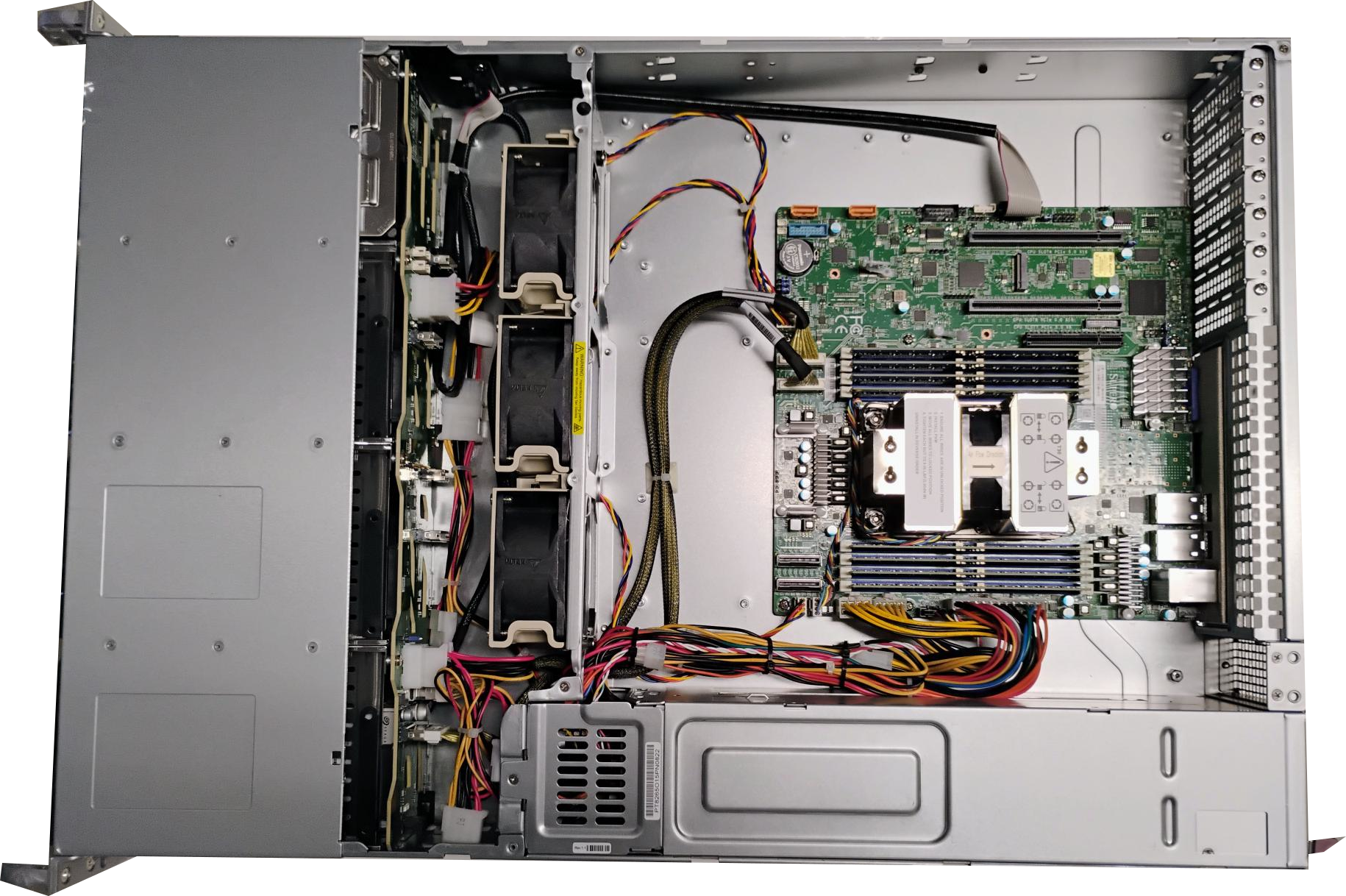

Top View

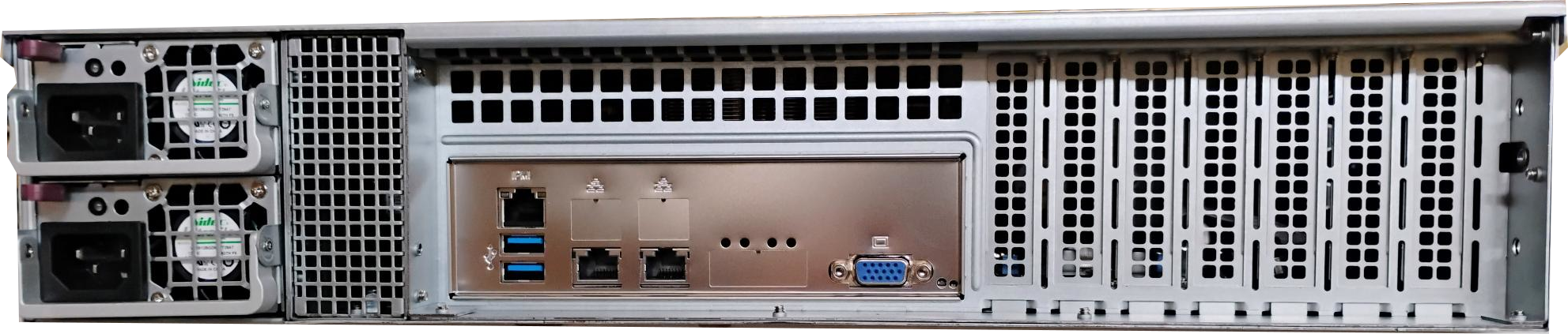

Rear View

Single Intel Xeon 6500/6700 AI/Compute server

  • One Intel Xeon 6500/6700 Series Processor
    • Onboard Accelerators for AI, Data Analytics and Network performance efficiency
    • Up to 86 Performance cores or 144 Efficiency cores
  • Up to 2TB DDR5 ECC registered memory
    • Eight Channel memory busses
  • Onboard cost-effective 10Gigabit Ethernet
    • Enhanced I/O performance for cloud storage
    • Faster and more responsive virtualization
  • Blazing fast NVME PCIe SSD OS storage
  • 2U rack with hotswap power supply
    • High efficiency Platinum Level power supply
    • Hybrid SAS/NVMe v4 backplane supporting 12 hotswap drives
    • Hotplug chassis fans for redundant cooling
  • Real time monitoring of system health status
  • Serial Console Redirection for remote management
  • Remote Server Management over LAN using IPMI 2.0
  • 64-bit Linux operating system

Three year limited warranty

full specs tech notes

Compare all ASL Lancelot models

Lancelot 2861-N8T Lancelot 2861-SRT Lancelot 2861-SST Lancelot 2861-N8T4 Lancelot 2861-SRT4 Lancelot 2861-SST4
Processor One Xeon® 6 6511P (16-core) One Xeon® 6 6511P (16-core) One Xeon® 6 6511P (16-core) One Xeon® 6 6511P (16-core) One Xeon® 6 6511P (16-core) One Xeon® 6 6511P (16-core)
Memory 128GB DDR5-6400 ECC registered 128GB DDR5-6400 ECC registered 128GB DDR5-6400 ECC registered 128GB DDR5-6400 ECC registered 128GB DDR5-6400 ECC registered 128GB DDR5-6400 ECC registered
Storage 8 NVMe & 4 SATA 4 NVMe & 8 SAS/SATA (HW RAID) 4 NVMe & 8 SAS/SATA 8 NVMe & 4 SATA 4 NVMe & 8 SAS/SATA (HW RAID) 4 NVMe & 8 SAS/SATA
Ethernet Controller Intel X710-AT2 Dual-Port 10Gbit (RJ45) Intel X710-AT2 Dual-Port 10Gbit (RJ45) Intel X710-AT2 Dual-Port 10Gbit (RJ45) Intel X710-TM4 Quad-Port 10Gbit (RJ45 & SFP+) Intel X710-TM4 Quad-Port 10Gbit (RJ45 & SFP+) Intel X710-TM4 Quad-Port 10Gbit (RJ45 & SFP+)
Starting Price
$3,819
$4,378
$4,023
$3,943
$4,502
$4,147
