Sovereign 2890

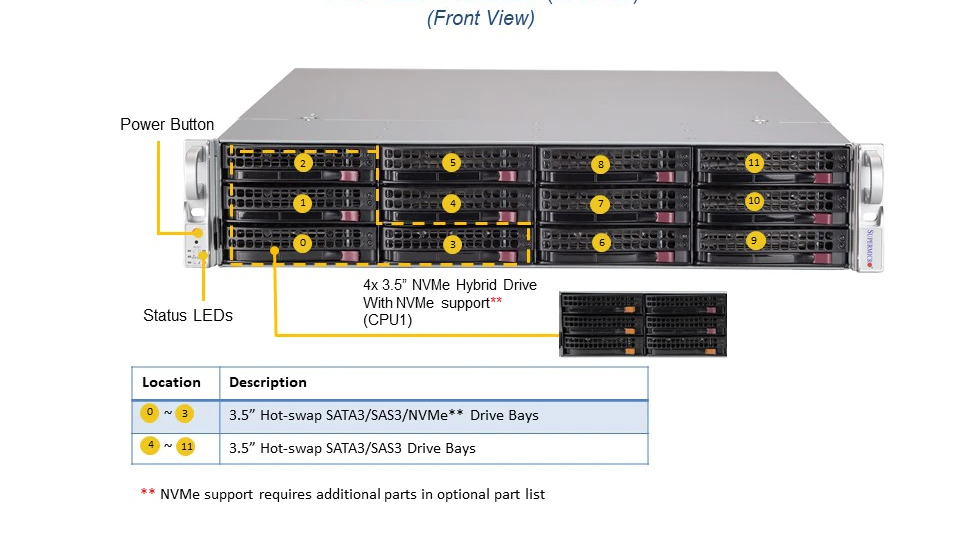

Front View

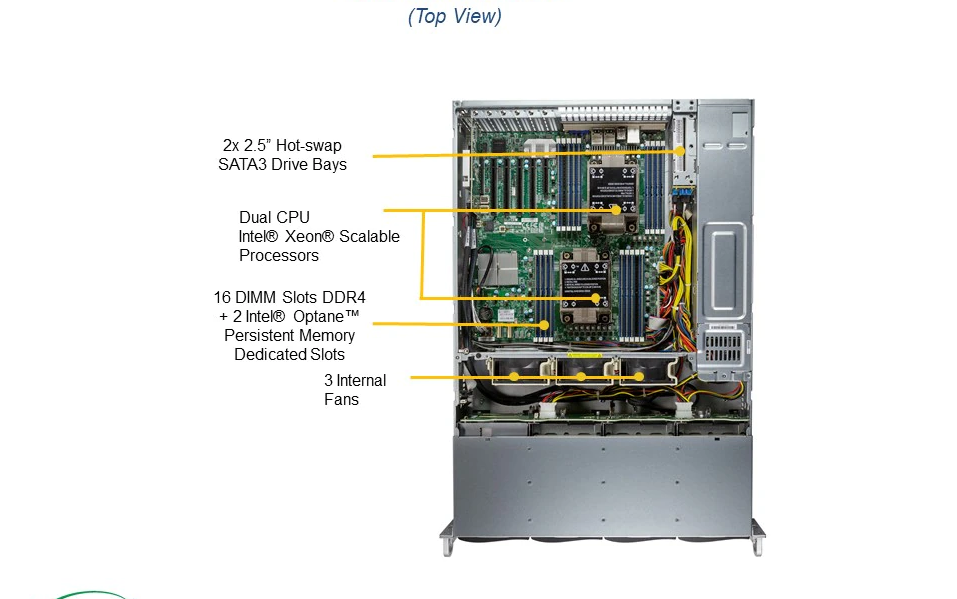

Top View

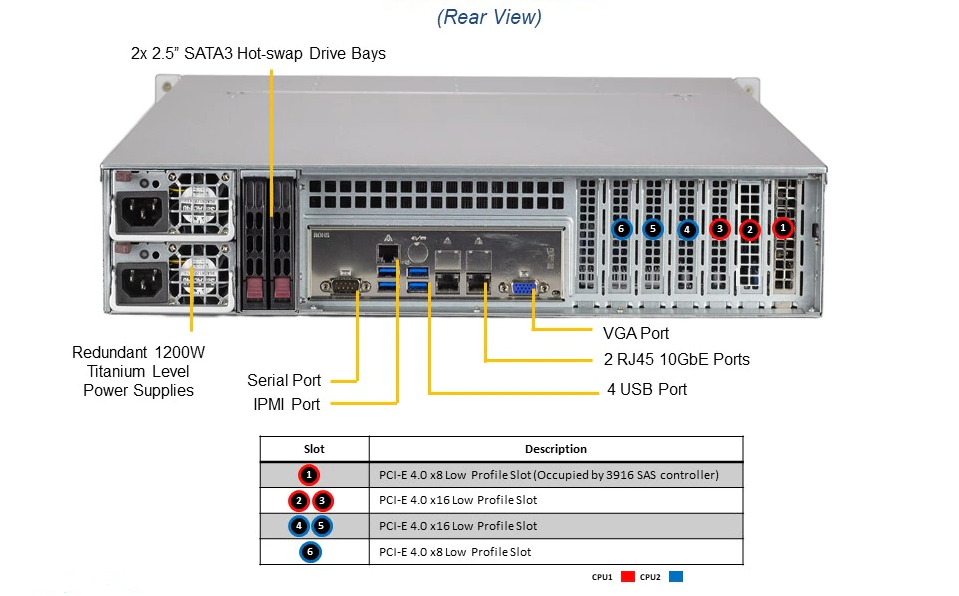

Rear View

Enterprise 2-way Intel Xeon Scalable Processor RAID storage server

  • Intel C621A chipset providing excellent performance and stability
  • Up to two Intel Xeon Scalable 3rd Gen Processor series processors
    • Up to 80 physical cores
  • Up to 4TB DDR4 ECC registered memory
    • Eight Channel memory busses
    • Sixteen DIMM slots for optimal expansion
  • Onboard cost-effective 10Gigabit Ethernet
    • Enhanced I/O performance for cloud storage
    • Faster and more responsive virtualization
  • Broadcom high speed SAS3 12Gbs PCIe 4.0 controllers
    • The HBA model (SST) is optimized for ZFS filesystem
    • The RAID model (SRT) supports level 0, 1, 5, 6, 10, 50 and 60
  • Blazing fast NVME PCIe SSD OS storage
  • Six PCI Express version 4.0 expansion slots
  • 2U rack with hotswap & redundant power supply
    • High efficiency Titanium Level power supply
    • SAS3 backplane supporting 12 hotswap drives
    • Two rear 2.5in hotswap drive bays for SSD/OS setup
  • Serial Console Redirection for remote management
  • Onboard in-band & out-of-band remote server management over
    LAN using IPMI 2.0
  • 32-bit or 64-bit Linux operating system

Three year limited warranty

full specs tech notes

Compare all ASL Sovereign models

Sovereign 2890-SST Sovereign 2890-SRT
Processor One Xeon® Silver 4309Y (8-core) One Xeon® Silver 4309Y (8-core)
Memory 64GB DDR4-3200 ECC registered 64GB DDR4-3200 ECC registered
Storage Controller Broadcom 3816 SAS3 Host Bus Adapter Broadcom 9560 SAS3 RAID Controller
Hard Disk 1TB NVME PCIe SSD (OS) 1TB NVME PCIe SSD (OS)
Starting Price
$4,449
$4,876
